DV PE400-1500
CARDI DV PE400-1500 blade saw on rail for wet cuts with 40 cm diamond blade.
Construction worker cutting a wall with CARDI DV PE400-1500 blade saw on rail.
Construction worker cut a wall using CARDI PE 401 diamond blade saw.
Construction worker cut a wall using CARDI PE 401 diamond blade saw.
Construction worker with CARDI PE 400 diamond blade saw.
Construction worker cut a wall using CARDI PE 400 diamond blade saw.
Construction worker cut a wall using CARDI PE 400 diamond blade saw.
Construction worker cut a wall using CARDI PE 400 diamond blade saw.
Construction worker cut a wall using CARDI PE 400 diamond blade saw.
Construction worker cut a wall using CARDI PE 401 diamond blade saw.
CARDI DV PE400-1500 Sega circolare per tagli umidi su binario si prepara per tagliare un muro
CARDI DV PE400-1500 blade saw on rail for wet cuts with 40 cm diamond blade, side view.

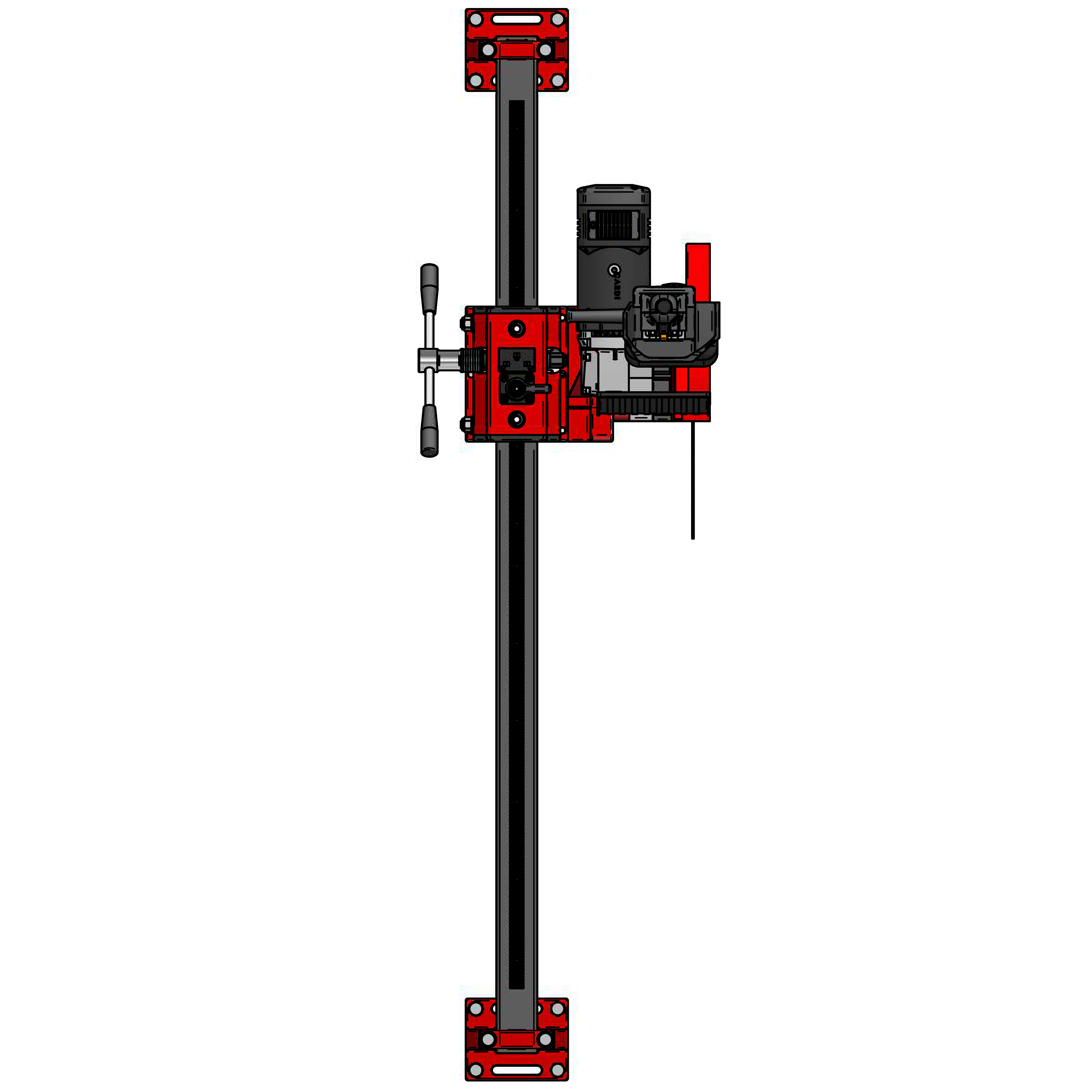

CARDI DV PE400-1500 blade saw on rail for wet cuts with 40 cm diamond blade, front view.
CARDI DV PE400-1500 blade saw on rail for wet cuts with 40 cm diamond blade.
CARDI DV PE400-1500 blade saw on rail for wet cuts with 40 cm diamond blade.
Construction worker cutting a wall with CARDI DV PE400-1500 blade saw on rail.
Construction worker cut a wall using CARDI PE 401 diamond blade saw.
Construction worker cut a wall using CARDI PE 401 diamond blade saw.
Construction worker with CARDI PE 400 diamond blade saw.
Construction worker cut a wall using CARDI PE 400 diamond blade saw.
Construction worker cut a wall using CARDI PE 400 diamond blade saw.
Construction worker cut a wall using CARDI PE 400 diamond blade saw.
Construction worker cut a wall using CARDI PE 400 diamond blade saw.
Construction worker cut a wall using CARDI PE 401 diamond blade saw.
CARDI DV PE400-1500 Sega circolare per tagli umidi su binario si prepara per tagliare un muro
CARDI DV PE400-1500 blade saw on rail for wet cuts with 40 cm diamond blade, side view.
CARDI DV PE400-1500 blade saw on rail for wet cuts with 40 cm diamond blade, front view.

DV PE400-1500

Blade saw on rail - wet - also flush cut - blade included

Wet
PE + DA VINCI technology - electric air-cooled 1P motor + CARDI adv. electronics
Ultra heavy-duty, impressively powerful, for any cutting
400 / 16" [mm]/[in]
160 / 6"1/4 [mm]/[in]
4600/3420 W

Contact us
SKU: 20700 Categories: ,

Main features

Cutting mode Wet
Technology PE + DA VINCI technology - electric air-cooled 1P motor + CARDI adv. electronics
Blade diameter 400 / 16" [mm]/[in]
Cutting depth 160 / 6"1/4 [mm]/[in]
Input power (max / rated) 4600/3420 W
Input current (max / rated) 22/16 A
Material Reinforced concrete, Concrete / stones / asphalt, Masonry / bricks
Main track length 1500/59" [mm]/[in]
Usable cutting length 1200 / 47"1/4 [mm]/[in]

Users

Construction company / general contractor
Professional drilling and cutting company
Demolition expert

Applications

Opening of doors, windows, skylights
Cutting of marble and stone slabs
Cutting of pavement slabs
Cutting of grooves and joints

Included items

Technical features

DV PE400-1500 - Technical Image
Operational mode Hand-held or on rail
Cutting mode Wet
Technology PE + DA VINCI technology - electric air-cooled 1P motor + CARDI adv. electronics
Blade diameter 400 / 16" [mm]/[in]
Cutting depth 160 / 6"1/4 [mm]/[in]
Input power (max / rated) 4600/3420 W
Input current (max / rated) 22/16 A
Material Reinforced concrete, Concrete / stones / asphalt, Masonry / bricks
Motor type | Rated voltage - rated frequency Electric - 1P | 230 V - 50-60 Hz
Rated no-load rpm 2870 RPM
Rated load rpm 1880 RPM
Blade hole diameter 25.4 / 1" [mm]/[in]
PRCD / GFI Included
Noise emission value - A-weighted sound pressure level (LpA) 93 [dB (A)]
Noise emission value - A-weighted sound power level (LWA) 104 [dB (A)]
Vibrations value (ah) 6.65 (hand-held) [m/s²]
Main track length 1500/59" [mm]/[in]
Usable cutting length 1200 / 47"1/4 [mm]/[in]
Weight 49.85/109.9 [kg]/[lb]
Dimensions - L x W x H 1580x445x675 - 62"x17"x26"1/2 [mm]/[in]
Supplied in Carton box
