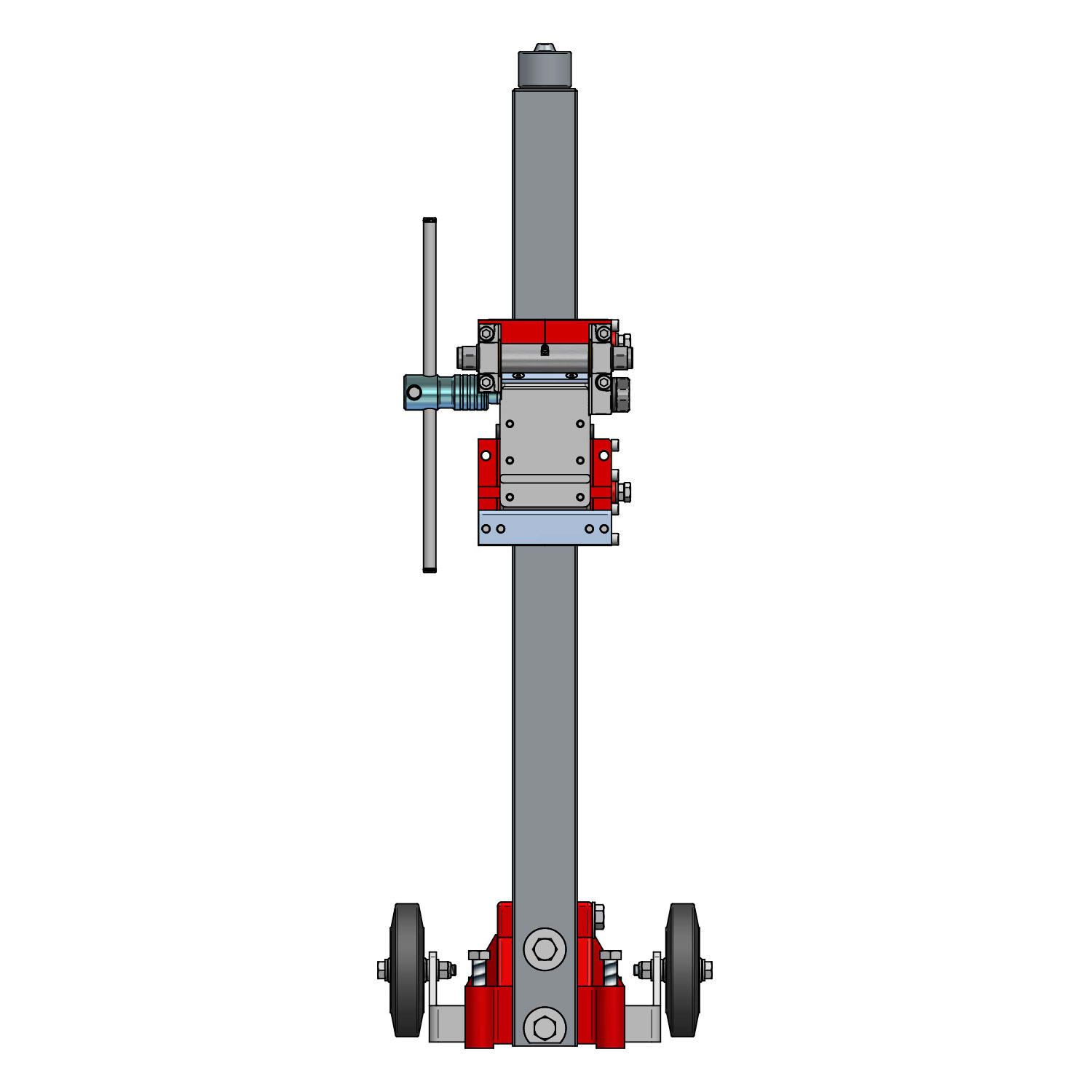

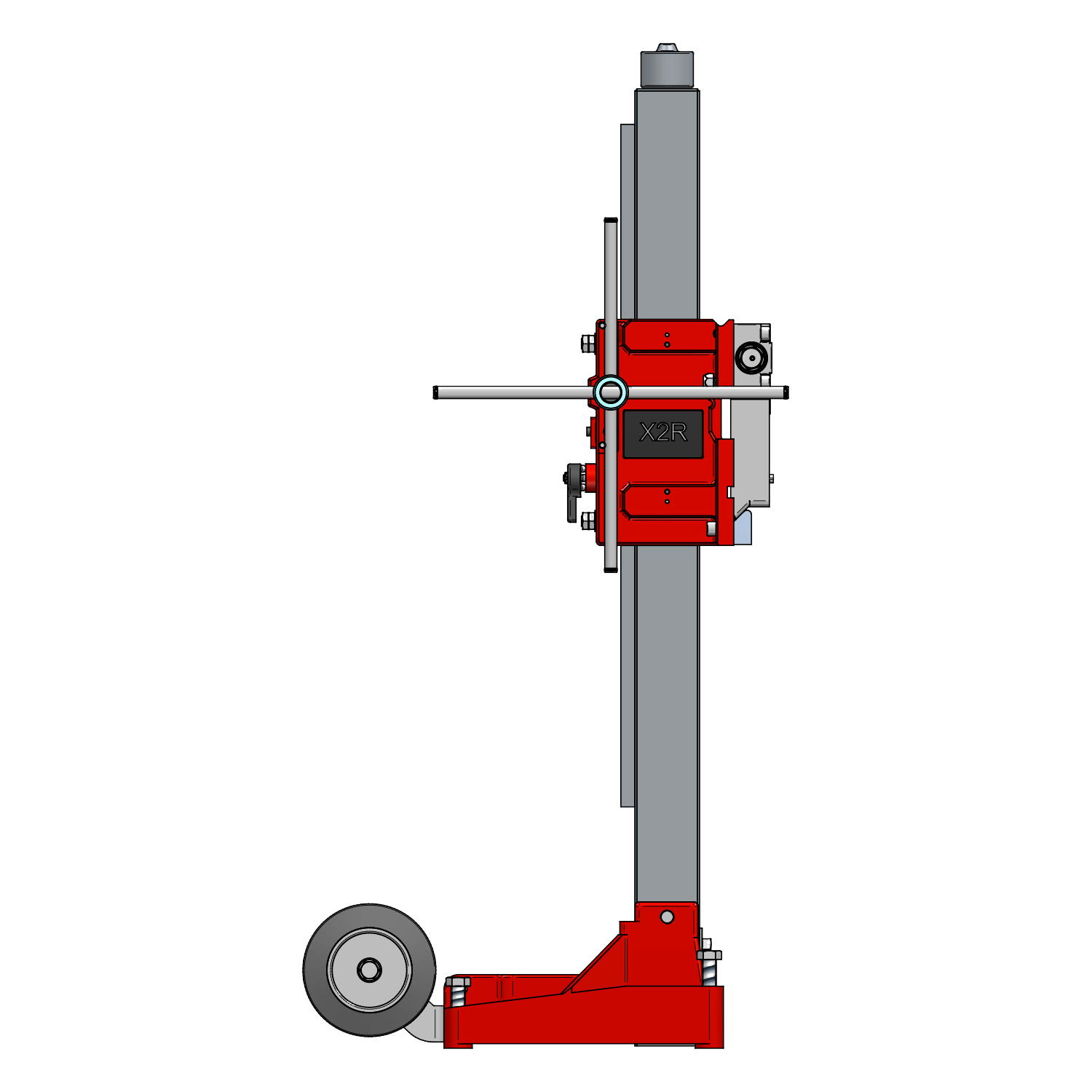

X2R
Stand (rig) - heavy duty - with Cam-lock quick connection
Ultra heavy-duty, for very large drillings
700 / 28" [mm]/[in]
Main features
Base
compact and light aluminum base
Column
steel 73x73 mm/steel 2"7/8 x 2"7/8 [mm]/[in]
Carriage
steel rollers and bearings
Feeding handle
2 spokes feeding handle
Max carriage run
750 / 29"1/2 [mm]/[in]
Rear bars
steel - 2 bars
Fixing system
with anchor
Core drill mounting
Cam-lock quick connection
Max drilling diameter
700 / 28" [mm]/[in]
Users
Construction company / general contractor
Professional drilling and cutting company
Demolition expert
Company specialized in quarrying
Applications
Drillings for chimneys installation
Drillings of marble and stone slabs
Sampling of cores
Manhole / round openings
Consolidation and securing of buildings – deep drillings
Drillings of marble and stones in quarries
Stitch drilling
Opening of doors, windows, skylights
Included items
501163Spanner 19 mm

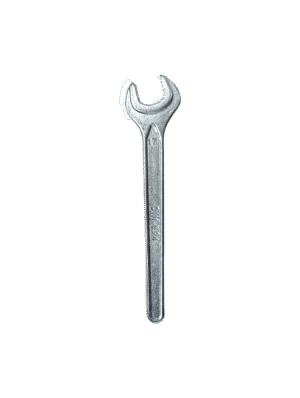

502519Wrench 17mm

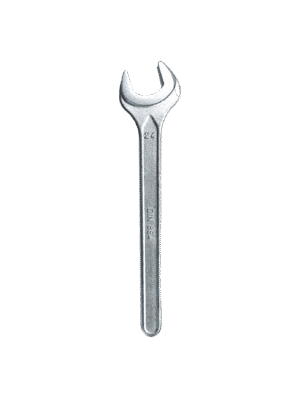

503138 (OLD 503295)Wrench 24mm
505284Allen key 6 mm
Technical features
Technology
X2R technology
Base
compact and light aluminum base
Column
steel 73x73 mm/steel 2"7/8 x 2"7/8 [mm]/[in]
Carriage
steel rollers and bearings
Feeding handle
2 spokes feeding handle
Max carriage run
750 / 29"1/2 [mm]/[in]
Rear bars
steel - 2 bars
Fixing system
with anchor
Core drill mounting
Cam-lock quick connection
Max drilling diameter
700 / 28" [mm]/[in]
Weight
35.5/78.3 [kg]/[lb]
Dimensions - L x W x H
380x475x1130 - 15"x18"3/4x44"1/2 [mm]/[in]
Supplied in
Carton box
