DV SD-1504
Core drill on rail - wet - 2 gears
Wet
TALPA + DA VINCI technology - electric air-cooled 1P motor + CARDI adv. electronics
Ultra heavy-duty, impressively powerful, for small-mid drillings
32-152 / 1"1/4-6" [mm]/[in]
3350/2820 W
Main features
Drilling mode
Wet
Technology
TALPA + DA VINCI technology - electric air-cooled 1P motor + CARDI adv. electronics
Drilling diameter - masonry
32-152 / 1"1/4-6" [mm]/[in]
Drilling diameter - reinforced concrete
32-152 / 1"1/4-6" [mm]/[in]
Input power (max / rated)
3350/2820 W
Input current (max / rated)
31/25 A
Material
Reinforced concrete, Concrete / stones / asphalt, Masonry / bricks
Main track length
1500/59" [mm]/[in]
Usable stitch drilling length
500/19"3/4 [mm]/[in]
Users
Construction company / general contractor
Professional drilling and cutting company
Demolition expert
Applications
Sampling of cores
Stitch drilling
Opening of doors, windows, skylights
Included items
Core drill motor: T4 300-EL-7
Rail: DV SD-1500
Accessory: 501163 – Spanner 19 mm
Accessory: 505284 – Allen key 6 mm

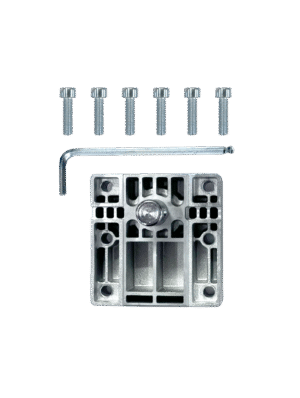

Accessory: 505039 – Rapid-lock plate for core drill motor to L 180 / L 200 / L 300 stands
Technical features
Operational mode
On rail
Drilling mode
Wet
Technology
TALPA + DA VINCI technology - electric air-cooled 1P motor + CARDI adv. electronics
Drilling diameter - masonry
32-152 / 1"1/4-6" [mm]/[in]
Drilling diameter - reinforced concrete
32-152 / 1"1/4-6" [mm]/[in]
Input power (max / rated)
3350/2820 W
Input current (max / rated)
31/25 A
Material
Reinforced concrete, Concrete / stones / asphalt, Masonry / bricks
Motor type | Rated voltage - rated frequency
Electric - 1P | 115-120 V - 50-60 Hz
Gears
2
Rated no-load rpm
440/1030 RPM
Rated load rpm
290/680 RPM
Core bit connection
1"1/4 UNC
PRCD / GFI
Included
Noise emission value - A-weighted sound pressure level (LpA)
91 [dB (A)]
Noise emission value - A-weighted sound power level (LWA)
104 [dB (A)]
Main track length
1500/59" [mm]/[in]
Usable stitch drilling length
500/19"3/4 [mm]/[in]
Weight
39.2/86.4 [kg]/[lb]
Dimensions - L x W x H
1580x415x1150 - 62"x16"x40" [mm]/[in]
Supplied in
Carton box
